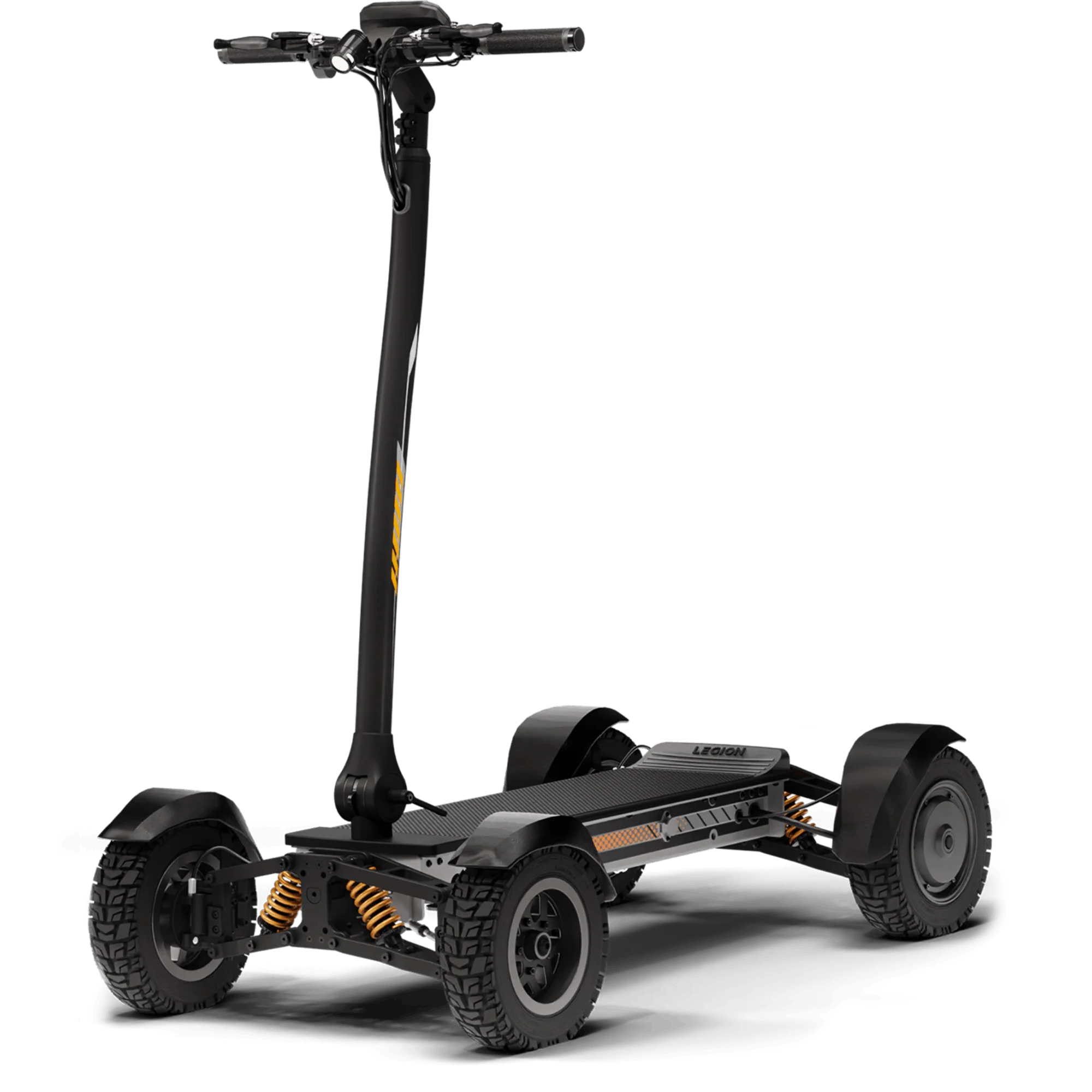

The CycleBoard X-QUAD is a four-wheel electric mobility scooter engineered for stability on mixed terrain. It uses a dual rear hub motor system rated at 1,500 W per motor (3,000 W combined peak output, manufacturer-stated) powered by a removable 60 V 30 Ah lithium-ion battery (1,800 Wh) built with LG and/or Samsung 21700 cells.

The manufacturer-stated top speed is up to 27 mph with a maximum estimated range of up to 50 miles per charge under ideal riding conditions. Real-world performance varies depending on rider weight, terrain, speed mode, temperature, and battery condition.

Independent double-wishbone suspension on both front and rear provides approximately 3 inches of travel per side to help absorb uneven terrain. The patented lean-to-steer linkage system allows directional control while maintaining four-wheel stability. The braking system combines dual front mechanical drum brakes, dual rear hydraulic disc brakes (165 mm), and regenerative braking through the motors.

Key specifications:

• Motor system: Dual rear hub motors, 1,500 W each (3,000 W combined peak)
• Top speed: Up to 27 mph (manufacturer-stated)
• Battery: 60 V 30 Ah removable lithium-ion battery (1,800 Wh)
• Range: Up to 50 miles per charge (ideal conditions)
• Charging time: Approx. 8 hours
• Tires: 11 × 4 in all-terrain pneumatic tires
• Suspension: Independent front and rear double wishbone
• Brakes: Dual front drum + dual rear hydraulic disc + regenerative braking
• Lighting: LED headlight, integrated tail/brake lights, turn signals
• Display: Backlit LED display with speed, battery, odometer, ride modes
• Frame: Aircraft-grade aluminum chassis with steel components
• Weight: Approx. 125 lb with battery
• Max suggested rider weight: 350 lb

This electric scooter is intended for personal transportation and recreational use where permitted by local regulations. It is not DOT-approved and not intended for highway use. Always follow local laws regarding speed limits, helmet use, licensing, and riding areas.

Estimated Delivery: 6–12 Business Days.
